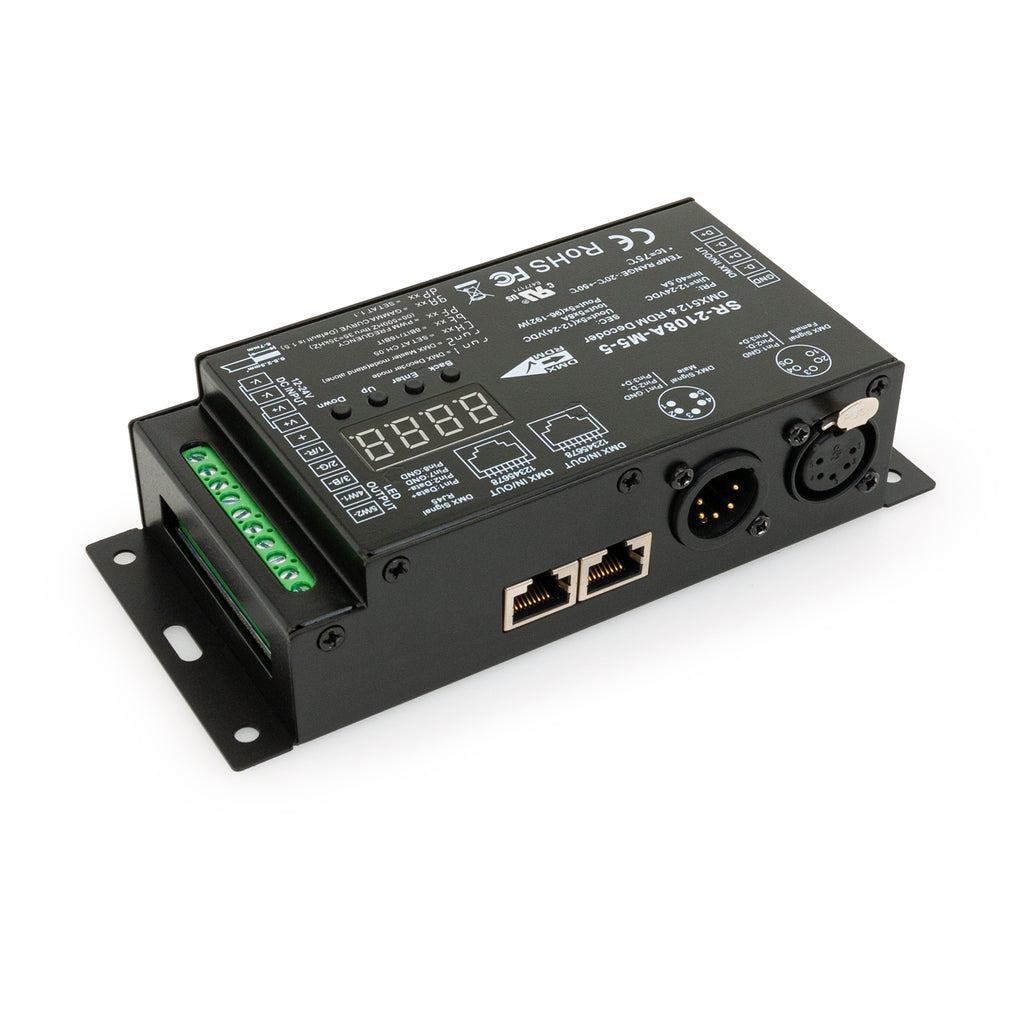

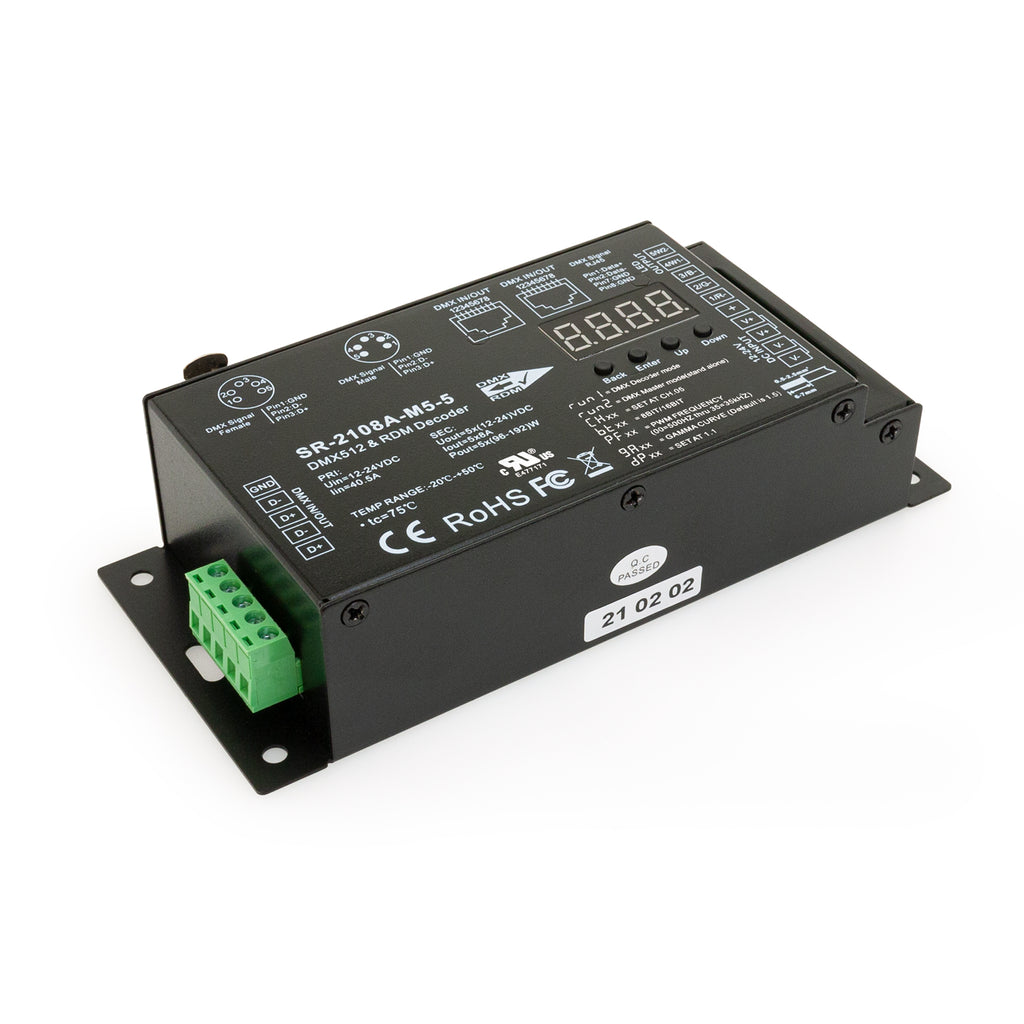

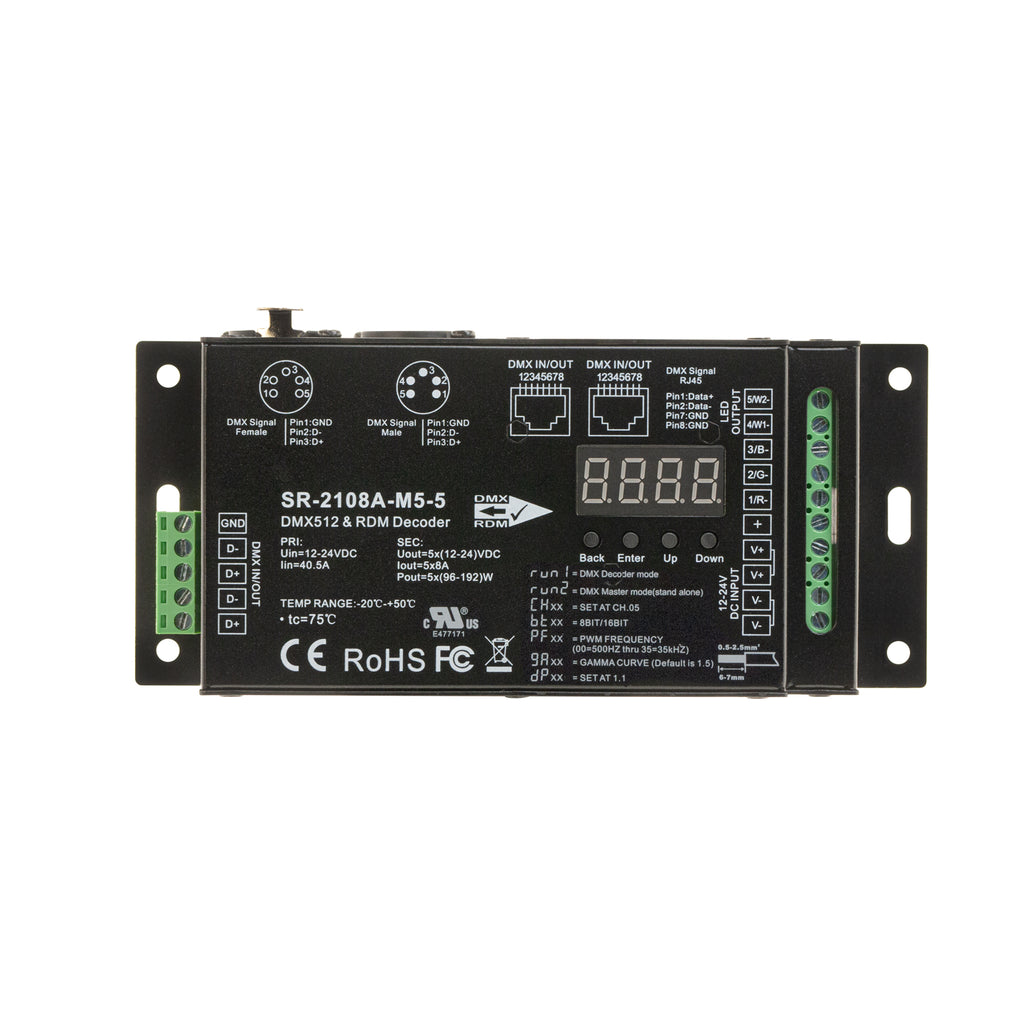

LED Dimmer and Controller
DMX512 and RDM Decoder
- Operating Voltage: DC 12V / 24V
- Output Current: 40A max (8A/CH)
- Power:5 x 192W for 24V and 5 x 96W for 12V
- Signal Input & Output: DMX512
- Product description: DMX512 and RDM Decoder
| Output Type | Constant Voltage |
| Operating Voltage | 12-24V DC |
| Input Current | 40.5A |
| Output Current | 40A max (8A/CH) |
| PWM Frequency | 500Hz to 30K Hz |
| Power | 5 x 192W for 24V and 5 x 96W for 12V |
| Control Channels | 5 channels (5 CH) |
| Signal Input & Output | DMX512 |
| Terminals | 3/5 pin XLR, RJ45, screw terminal |
| Bit Rate | 8 bit/ 16 bit |
| Body Color | Black |
| Material | Die-cast Aluminum |
| Working Temperature | -20°C~+50°C |
| IP Rating | IP20 |
| Protection | Short circuit protection |
| Dimensions | 165 x 73 x 38 mm (6.5 x 2.9 x 1.5 in) |
Features:
- DMX512 RDM decoder, RDM function can realize intercommunication between DMX master and decoder.
- Total 5 PWM output channels, common anode 5*8A. DMX channel quantity from 1CH~5CH settable
- PWM output resolution ratio 8bit, 16bit settable
- Output PWM frequency from 500HZ ~ 30K HZ settable
- Output dimming curve gamma value from 0.1 ~ 9.9 settable.
- Decoding mode settable
- Master & decoder mode, RDM function
- Metal housing, digital display to show data directly, easy to set and show DMX address.
